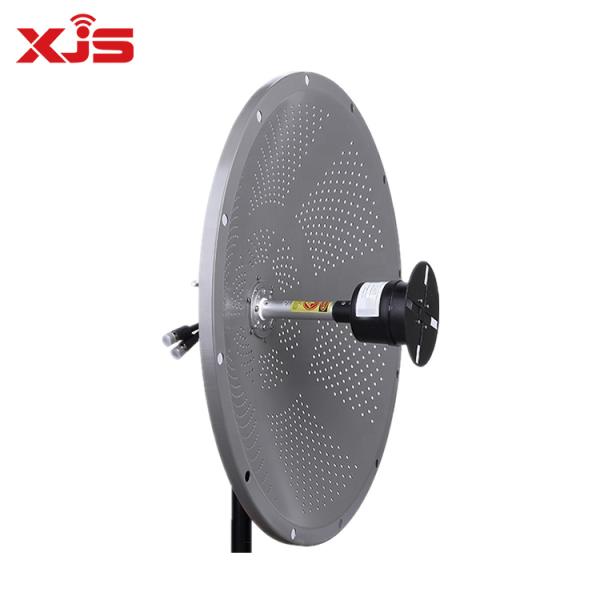

1710-2700MHz Long Range 4G LTE Antennas 22dBi WiFi Wlan Mimo Dish Antenna

Product Categories
XIANG JIA SHENG Technology Co., Ltd
Contact Now

1710-2700MHz Long Range 4G LTE Antennas 22dBi WiFi Wlan Mimo Dish Antenna

Brand Name : XJS

Model Number : TDD-1727-22HV

Certification : ROHS CE

Place of Origin : Guangdong, China

MOQ : 20

Price : USD 59-65

Payment Terms : L/C, T/T, Western Union

Supply Ability : 50000+PCS+month

Delivery Time : 7-20 working days

Freq. Range : 1700-2700 MHz

Gain : 22dBi

HPBWH（Deg.） : 17°

HPBWV（Deg.） : 18°

Polarization : H+V

F/B Ratio : ≥28dB

VSWR : ≤1.8

Impedance : 50Ω

Connector : N-female

Dimensions : Ф600mm

Contact Now

1710-2700MHz Long Range 4G LTE Antennas 22dBi WiFi Wlan Mimo Dish Antenna

Boost your 4G/LTE/5G signal with this Powerful Grid Antenna Compatible with : Huawei 5G CPE Pro , B535 : B525 , B316 PLDT Fx - ID3 , Fx P4 , Fx-ID5 (modified) - ZTE MF283 + MR286R

Features
  • * 22dBi directional operation, ideal for extraordinary long-distance outdoor directional connection
    * Weather proof design, suitable for all weather conditions
    * N Female connector, applicable in most outdoor solutions
    * Provides easy installation mounting kits
Application
  • * 2.4 GHz ISM band
    * 1700-2700MHz band
    * IEEE 802.11b/g/n Wireless LAN applications
    * WiFi systems and long range directional applications
    * Point to Point systems and Point to Multi-Point systems
    * Wireless bridges, backhaul applications and wireless video systems

Electrical Specifications

Frequency Range 1700-2700 MHz
Gain (dBi) 22 dBi
Horizontal Beamwidth 17°
Vertical Beamwidth 18°
VSWR <1.8
Polarization Horizontal+Vertical
F/B Ratio ≥28db
Impedance 50Ω

Mechanical Specifications

Connector 2*N-female
Dimensions Φ600mm
Weight (Kg) 13.5kg
Lightning Protection Dc Ground
Rated Wind Speed 126/ms
Mounting Type Pole Mount
Suitable pole diameter Ф30-80mm
